Servo Shim Positioner
You are using an outdated browser. For a faster, safer browsing experience, upgrade for free today.

Servo Shim Positioner

Dual axis unit is equipped with two actuators for X and Y movement

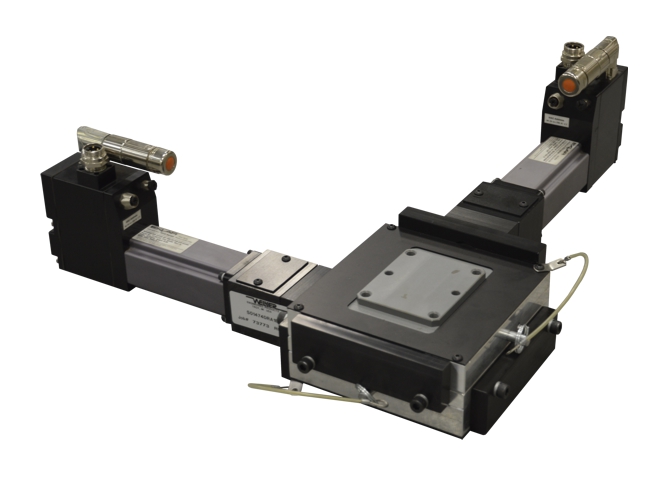

Dual axis unit

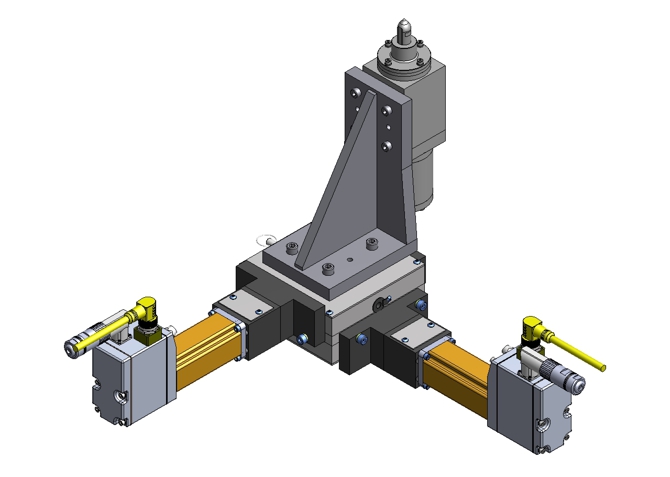

Dual axis servo shim mounted vertically

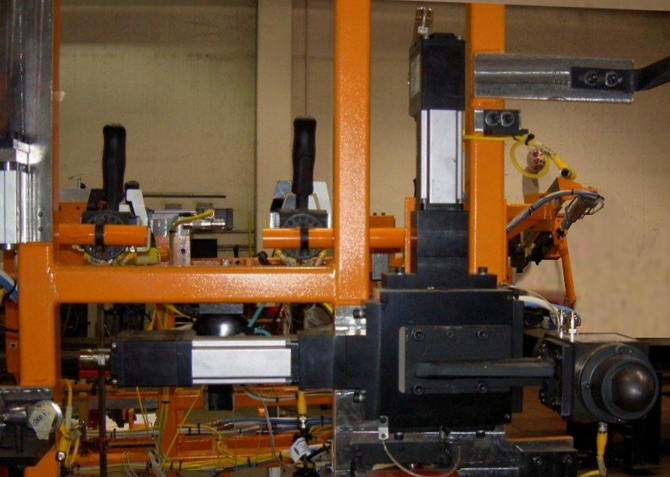

Dual axis unit, deck lid end effector
Servo shim with pin clamp in model select application
With pin clamp as locator & clamp

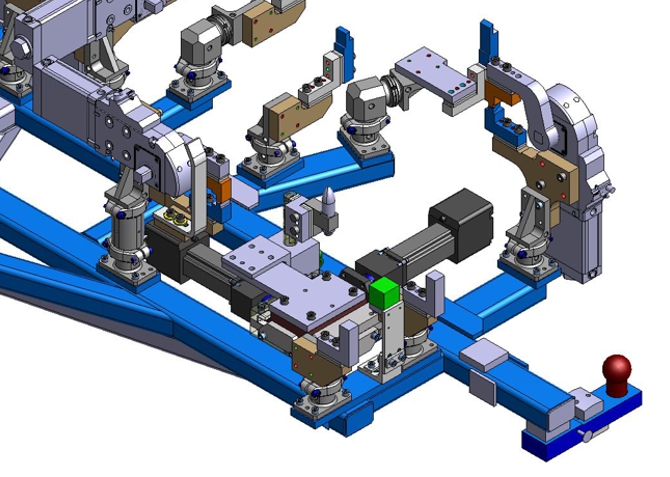

CAD snip of dual axis unit with tooling
Dual axis application

Servo Shim Positioner S01474

Maximizes tooling flexibility by allowing quick repositioning of nets for in-process adaption to build trends in metal.

  • Lightweight aluminum construction for end effectors
  • Match ground lead screw and nut holds position even without power
  • Available with single axis or double axis (shown) configurations
  • Slide travel is 25mm per axis, 1" per second travel speed
  • 150 lbf load capacity
  • Can be mounted in any orientation
  • Lube-free PTFE ways
  • 24V DC servo actuator with absolute encoder
  • Made to order only
