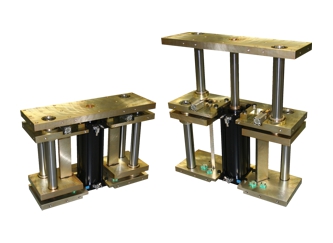

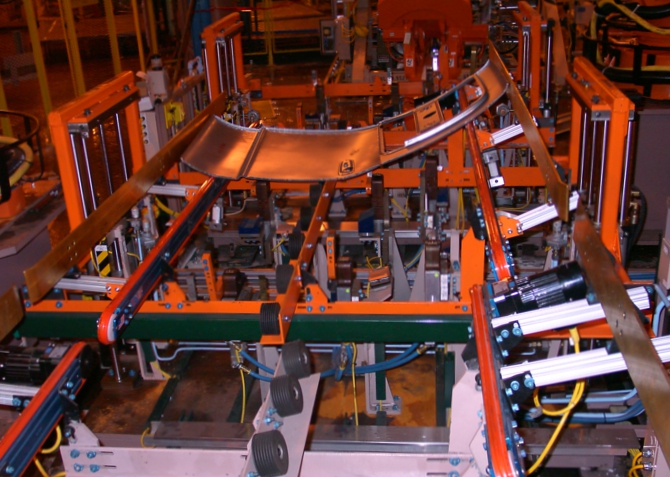

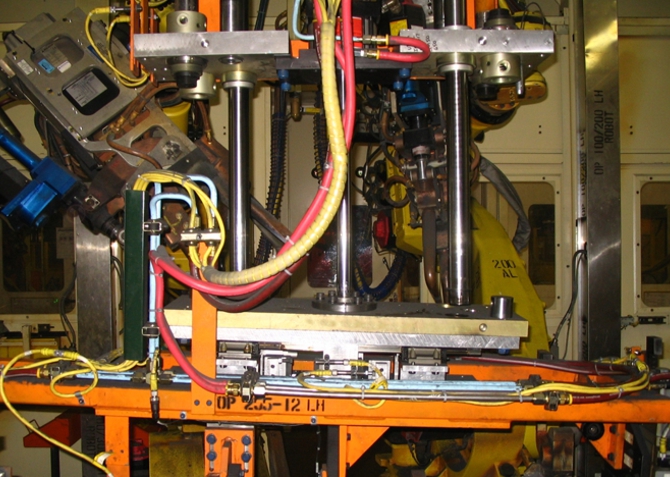

CLM lifters are available in strokes 50-1000mm, with locking and non-locking standard pneumatic cylinders. Applications include weld guns, nut runners, geo tooling, machining heads.
Load capacities at 60psi
CLM40, 4" cylinder: 365lbf extend, 325lb retract*
CLM50, 6" cylinder: 850lbf extend, 800lb retract*
CLM50, 8" cylinder: 1500lbf extend, 1400lb retract*
*min 60psi required to release locking cylinders
